Wireless charging primarily transfers energy through electromagnetic induction, enabling a convenient method of power replenishment without physical connectors. Charging initiates automatically once a compatible device is placed within the designated charging area. The system can dynamically adjust its output powerbased on the device's energy requirements and automatically cease chargingwhen the battery is fully charged, achieving automated power management .

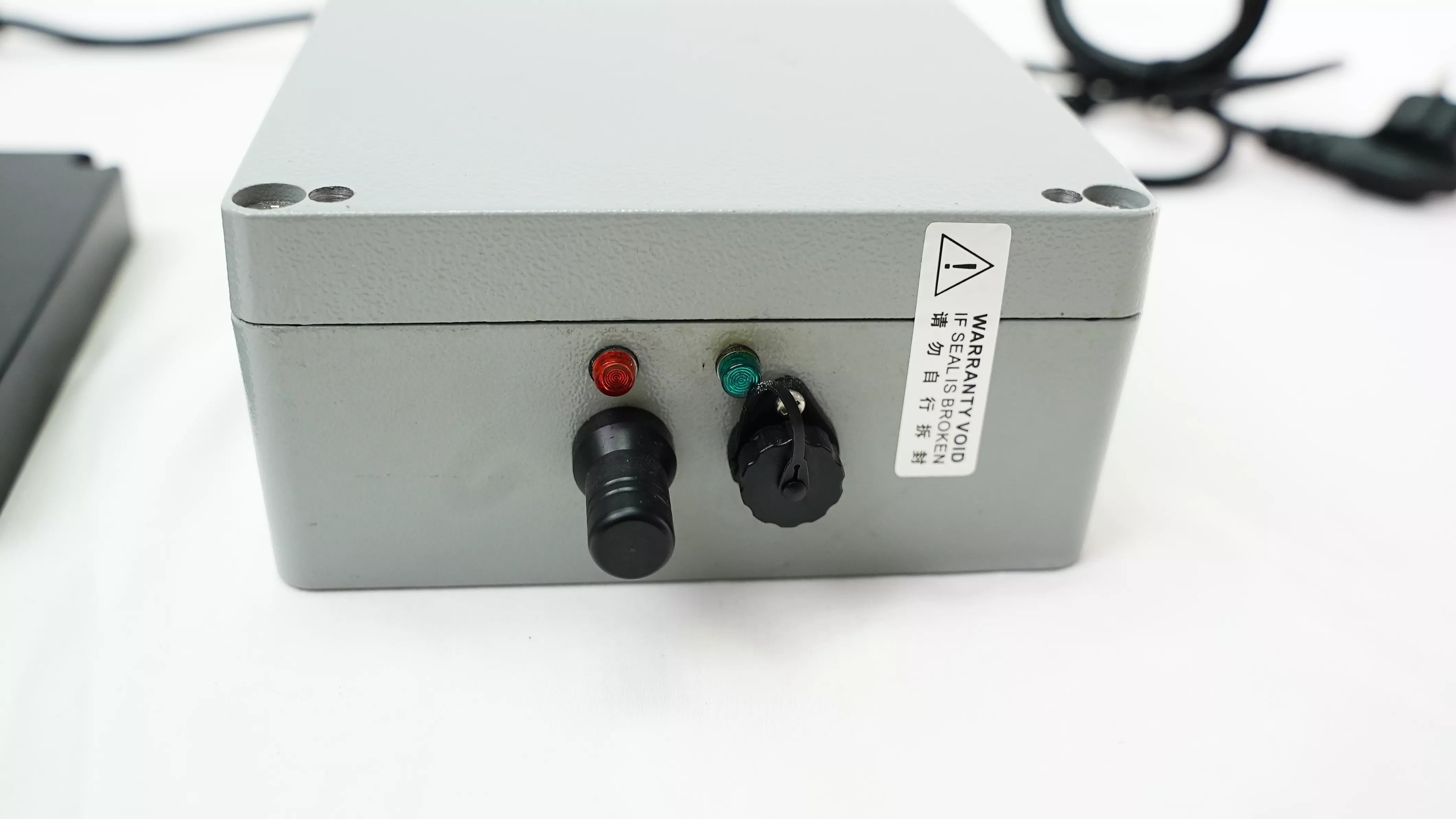

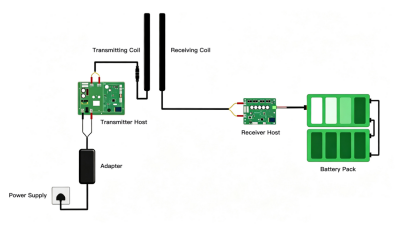

This product is a critical component of the wireless charging systemthe Transmitting End (TX), which includes the Transmitting Host Unitand the Transmitting Coil. It functions by generating an alternating electromagnetic field to transmit energy wirelessly and is designed to be installed and fixed inside the charging compartment of a charging station.

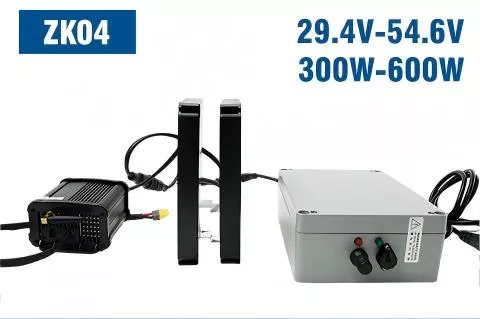

The parameters of the ZK04 module are as follows:
Input Voltage/Current: 180V to 260V AC / 3.8A
Output Voltage/Current: 29.4V 10A; 42V 10A; 54.6V 10A
Charging Efficiency: 85%
Transmitter Dimensions: Length 240mm x Width 160mm x Height 75mm
The ZK04 currently includes only the transmitter unit without a matching receiver. It can be paired with receiver units from other models
