Product Features:

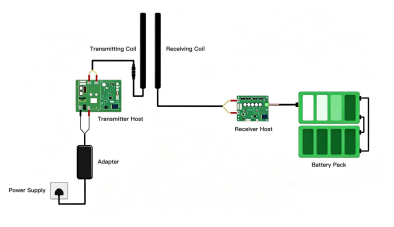

This product is a mediumtohigh power, magnetically resonant wireless charging module. It is designed for autonomous charging and standby power maintenance of automated equipment operating unattended, such as indoor rail-based or free-roaming inspection robots, AGVs, and new energy cleaning vehicles .
The product offers the advantages of contactless charging, no sparks, and corrosion resistance. It allows for significant tolerance in the device's docking alignment, enabling charging at any time with immediate start-up .
Furthermore, the charging system can engage autonomously without consuming the battery's power, and it can initiate charging even when the battery is depleted and switched off. It is equipped with input/output over-current, over-voltage, and over-temperature protection functions to ensure operational reliability .
技术参数：
型号 | ZK05-29.4V | ZK05-54.6V |
额定功率 | 350W | 650W |
输入电压 | 220V ±15% 50Hz | |
输入电流 | 2.0A | 3.8A |
充电电压 | 29.4V ±0.2 | 54.6V ±0.2 |
输出电流 | 10A ±5% | |
输出类型 | 恒流-恒压（充电曲线） | |
充电效率 | 85% | 88% |
发射散热方式 | 风扇风冷 | |
接收散热方式 | 铝背板散热 | |
数据传输方式 | 2.4G ISM（2.4~2.483GHz） | |
通信接口 | RS485（协议见附件） | |
工作环境 | -20-55℃ RH＜90% | |
存储温度 | -20-55℃ RH＜90% | |
保护温度 | 85℃ 回差10℃ | |
输出过压 | 有保护 | |
输出过流 | 有保护 | |
发射主机尺寸 | 203*147*77.8mm | |
接收主机尺寸 | 122.0*122.0*30.0mm | |
发射主机重量 | 1.38Kg | |
接收主机重量 | 0.32Kg | |
发射防护等级 | 无防护 | |
接收防护等级 | 无防护 | |
