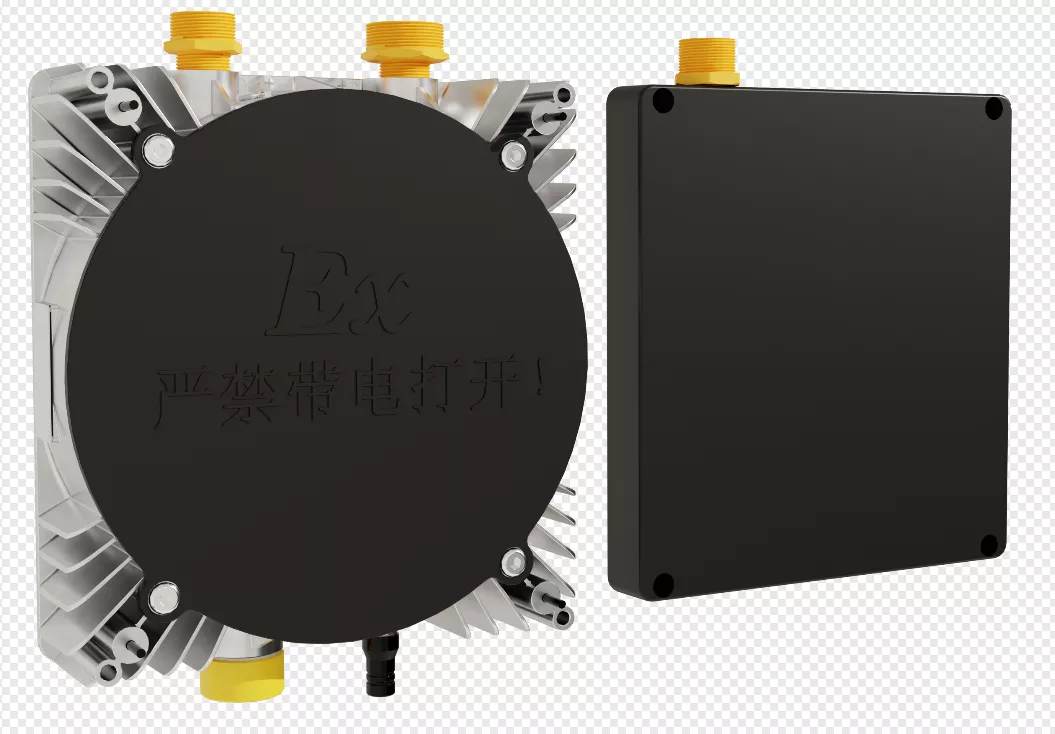

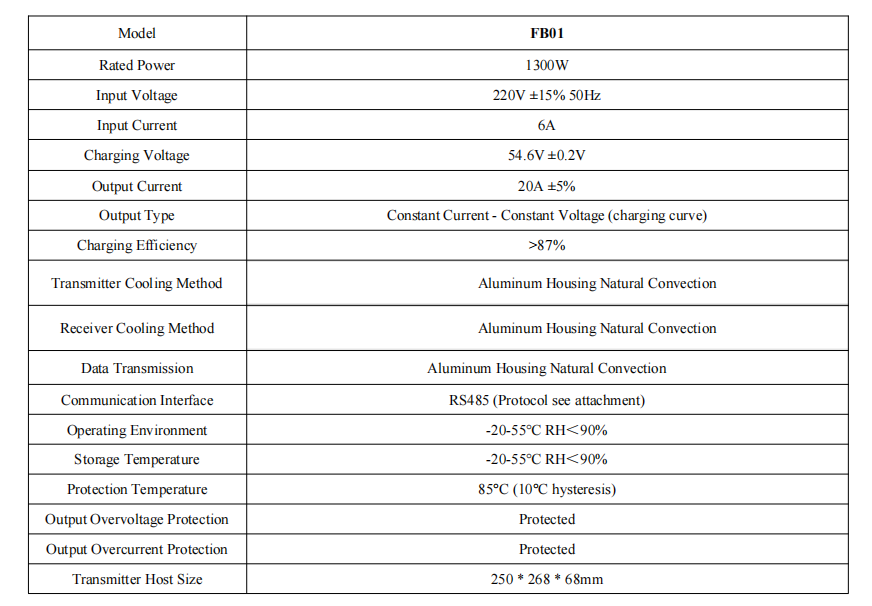

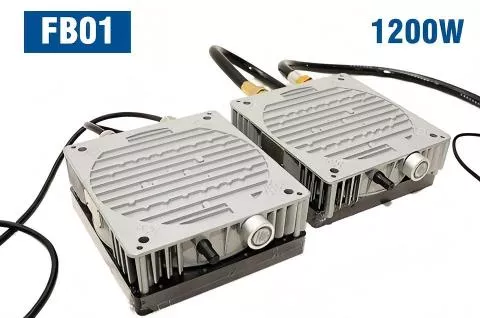

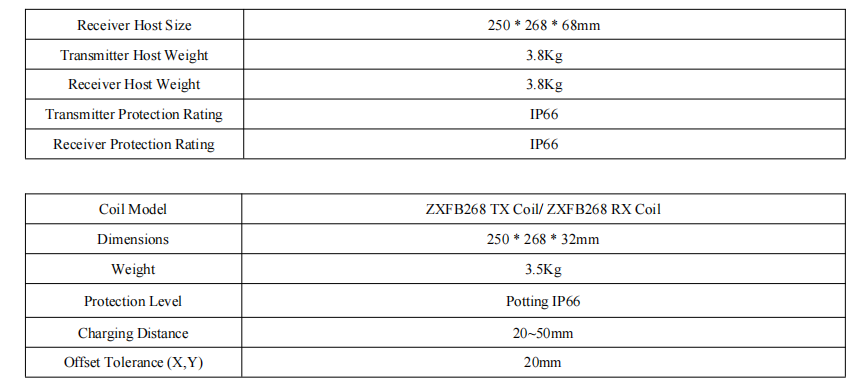

This product is a medium-to-high power, magnetically resonant, explosion-proof wireless charging module. It complies with the Chinese national standard GB3836 and has obtained an ExplosionProof Conformity Certificate, with the protection levels being: Ex db mb IIC T6 Gb; Ex tb IIIC T85℃ Db IP66 . It is designed for autonomous charging and standby power maintenance of automated equipment operating unattended in environments such as oil and gas plants and dusty areas . The product offers the advantages of contactless charging, no sparks, and corrosion resistance . It allows for significant tolerance in the device's docking alignment, enabling charging at any time with immediate startup . The charging system can engage autonomously without consuming the battery's power, and it can initiate charging even when the battery is depleted and switched off . It is equipped with input/output over-current, over-voltage, and over-temperature protection functions to ensure operational reliability .
Note: The illustrations in the instruction manual are schematic diagrams. As the product may be updated, the actual product might slightly differ from the diagrams. Please refer to the physical product for accuracy.

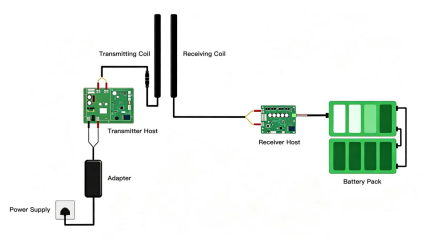

Accessories List:
Transmitting Coil: Output cable length 60cm. Can be optionally connected to the transmitter's explosion-proof aluminum housing using a DN15 flexible conduit.

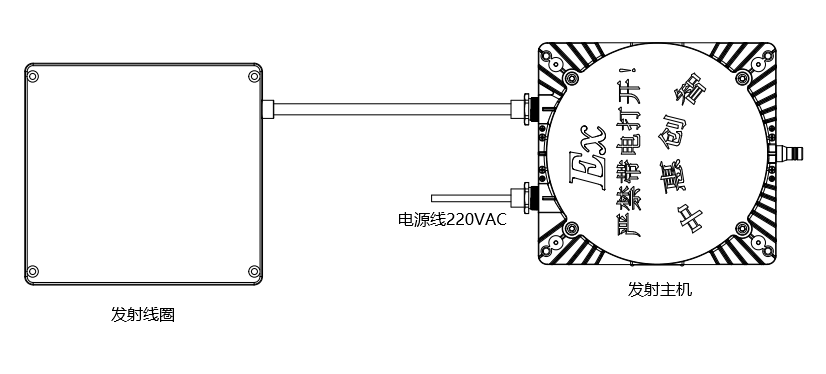

Transmitting Host Unit: The transmitter's explosion-proof housing has a power cord with a 10A three-pin plug, length 1.8 meters.
Receiving Coil: Output cable length 30cm. Can be optionally connected to the receiver's explosion-proof aluminum housing using a DN15 flexible conduit.

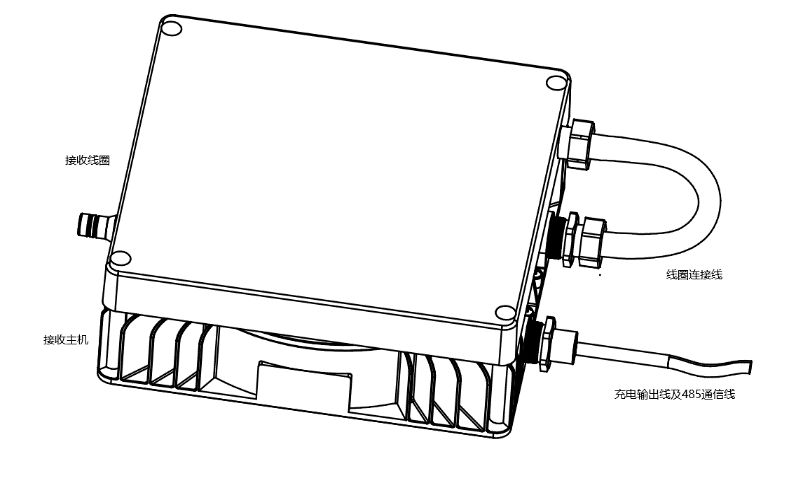

Receiving Host Unit: The receiver's explosion-proof housing output is a four-core cable, length 2 meters. Among them, two cores of 2.5 mm² are for charging (Red: V+, Black: V-); the other two cores of 0.3 mm² are for RS485 signal lines (Yellow: A+, Green: B-)
