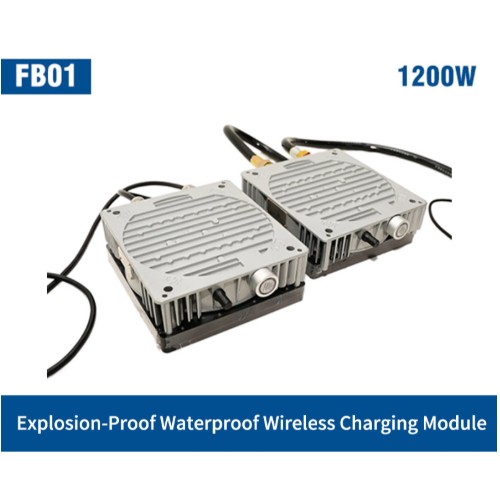

FB01 Explosion-proof Wireless Charging Module for Robots
Function: Wireless charging
Type: Medium Power
Specifications: 1200W
Color: Black
Brand: ZONECHARGE
Model: FB01
Release time :
2026-07-12
Category :
Finished product
- Features
- Product Description
Specifications
| Function | Wireless charging |
|---|---|
| Type | Medium Power |
| Specifications | 1200W |
| Color | Black |
| Brand | ZONECHARGE |
| Model | FB01 |
Basic Information
| Place of Origin | China |
|---|---|
| Brand Name | ZONECHARGE |
| Certification | — |
| Model Number | — |
Payment & Shipping Terms
| Packaging Details | — |
|---|---|
| Delivery Time | — |
| Payment Terms | L/C, T/T, D/P, D/A |
| Supply Ability | — |
Model FB01 is a medium-to-high power, explosion-proof wireless charging module utilizing magnetic resonance technology. It complies with the national standard GB3836 and holds an explosion-proof certification. The explosion-proof ratings are: EX db mb IIC T6 Gb; EX tb IIIC T85℃ Db IP66.
The charging system features autonomous docking without consuming battery power and can initiate charging even when the battery is in a depleted shutdown state. It incorporates comprehensive protection functions, including input/output over-current, over-voltage, and over-temperature safeguards, ensuring reliable equipment operation.
Technical Specifications
| Model | FB01 |
| Rated Power | 1300W |
| Input Voltage | 220V ±15% |
| Charging Voltage | 54.6V ±0.2 |
| Output Current | 20A ±5% |
| Charging Efficiency | 87% |
| Tx Dimensions | 250*268*68mm |
| Rx Dimensions | 250*268*68mm |
